Automatic Nucleic Acid Extractor

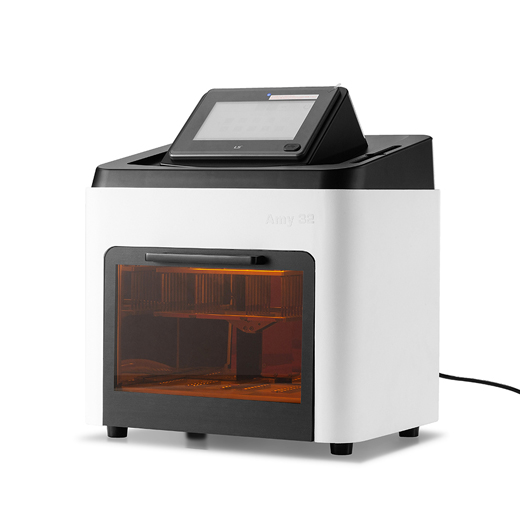

AMY 32 Automatic DNA Extraction System

Amy 32 automatic DNA extractor is a biomedical instrument specially used for automatic magnetic bead method for nucleic acid extraction. It is widely used in routine scientific research, genomics, food safety, disease diagnosis, forensic identification and other fields.

  • Extraction of 1-32 samples per run in 8-30 minutes

  • Reagent type:Open platform (Magnetic Bead Method)

  • Magnetic bead recovery: >98%

  • Dimensions(L*W*H): 400mm x 420mm x 440mm

  • Weight: 25KG

  • Packing: Standard flight case

Product Description:

Amy 32 automatic DNA Extraction System is a biomedical instrument specially used for automatic magnetic bead method for nucleic acid extraction. With different types of nucleic acid extraction reagents (Magnetic Bead Method), DNA and RNA can be quickly extracted from samples such as animal and plant tissues, blood, body fluids, and criminal materials.

Product Features of Amy 32 DNA Extraction System:

  • Precision

    The product features accurate temperature control, and rapid temperature rise; it adopts the single-row heating and cooling mode to reduce liquid evaporation and strictly controls the reaction system.

  • High efficiency

    The extraction time is short, it can complete the extraction of 1-32 samples at the a time in 8-30 minutes, realized high-throughput processing of samples, saved time and labour.

  • Convenience

    The instrument comes with a built-in edited running program, select the corresponding program and click "Run" to work, simple and friendly.

  • Safety

    With UV disinfection function, it effectively prevents microbial contamination.

  • Large Capacity

  • Easy and friendly interface

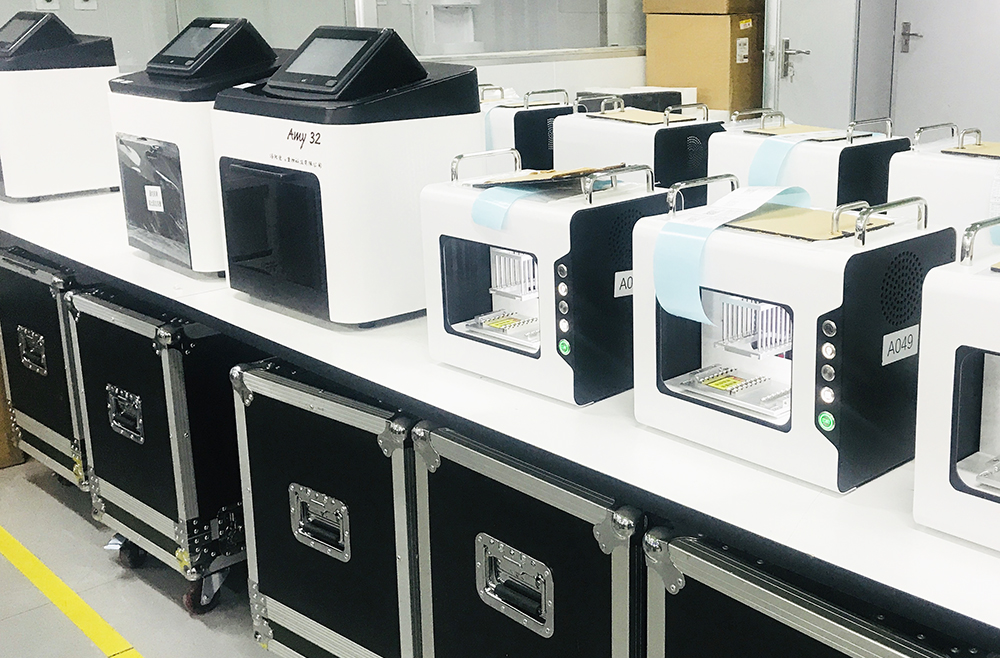

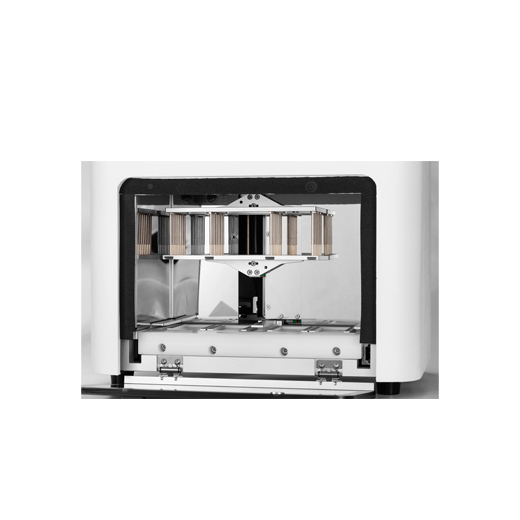

Product Pictures:

  • Strict inspection by our senior engineers.


质检 (1)

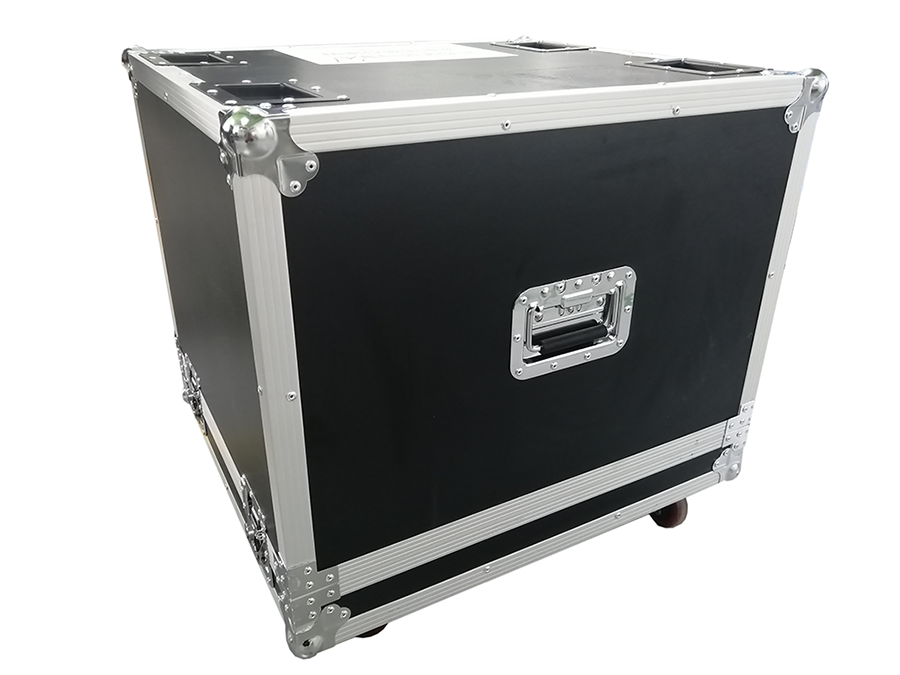

Packing Picture:


flight case

Additional Information

Technical parameters:

Power supply

AC110V-230V, 50Hz/60Hz, 750W


400mm x 420mm x 440mm

Extraction time8-30mins(determined by the reagents used)

Performance Index:

Processing volume
30 μl-1000μl
Shake mixing
3-stages adjustable
Sample throughput
Reagent type
Open platform
Magnetic bead recovery
> 98%
Operate interface
7'' color resistive touch screen
Well plate type
96-well deep plate
Built-in programscan store 20 programs

Variation b/w holes

Program management
Create, edit and delete mode
Magnetic rod
32 pcs
UV radiation
Heat temperature
RT to 80°C
Extraction time
