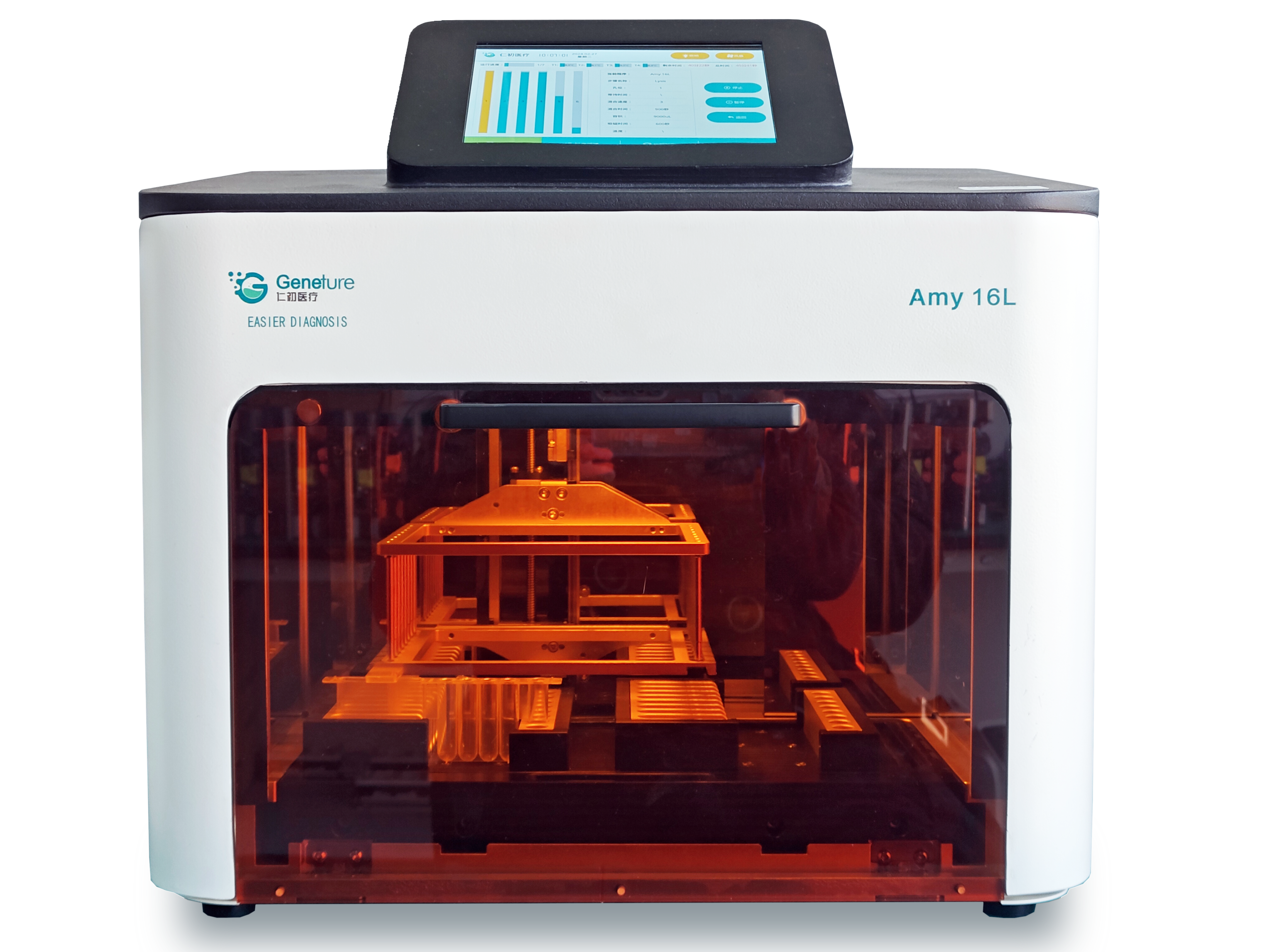

Automatic Nucleic Acid Extractor-Amy 16L
Amy 16L is designed for large volume samples and low content nucleic acid extraction, with a maximum processing volume of 11 mL. In combination with self-developed large-volume consumables, high-efficiency lysis and purification of low-copy samples such as plasma cell-free DNA, amniotic fluid, pleural effusion and ascites, virus preservation solution and environmental metagenome were realized to ensure high recovery rate of nucleic acid and the sensitivity and reliability of downstream detection.
Pre-loaded protocols and matched reagents enable one-touch operation.
Delivers high-yield, high-purity nucleic-acid extraction in a shortened, highly reproducible workflow.
Precision motion module with ultra-low failure rate ensures uninterrupted runs.
Integrated UV decontamination and lid-interlock protection minimize contamination risk and maximize operator safety.
Amy 16L is suitable for tumor early screening, prognosis monitoring and pathogen hypersensitivity detection, providing one-stop large-volume solution to meet the requirements of a variety of detection projects.
Model: Amy 16L
- SKU: 0202082
- Category: Automatic Nucleic Acid Extractor
Product Feature:
Large-volume processing: the maximum processing volume of Amy 16L is 11 mL, which can efficiently enrich trace nucleic acids and greatly improve the detection rate of low-concentration samples.
Automatic and efficient: automatic nucleic acid extraction, The extraction process can be completed in as fast as 10 minutes.
Drawer loading: push-pull drawer design, easy to quickly load and unload samples, improve operation convenience and test efficiency.
Dithering magnetic absorption: the unique dithering magnetic absorption method ensures the full adsorption of magnetic beads and reduces the residual magnetic beads.
Pollution prevention and control: equipped with UV disinfection module and high efficiency filter, multiple effectively reduce the risk of cross contamination.
Additional Information
Performance | Parameters |
Max. Processing Volume | 11 mL |
Sample Throughput | 1 - 16 samples |
Reagent Type | Magnetic bead method, open reagent and consumable platform |
Vessel Type | Large volume reagent tubes (6-tube strips) + Self-developed 8-channel mixing sleeves |
Temperature Control Range | Ambient temperature to 110°C |
Purification Sensitivity | >95% positive detection rate for 100 copy samples |
Purification Well-to-Well Variation | CV < 3% |
Temperature Accuracy | ± 1°C |
Temperature Uniformity | ≤ 1°C |
Surface Magnetic Flux Density | ≥ 5000 Gs |
Magnetic Bead Recovery Rate | ≥ 99% |
Sample Protection Features | Self-test at startup, power-off protection, over-temperature protection |
Sample Contamination Control | Built-in UV lamp and HEPA filter |
Mixing & Agitation | Multi-stage speed control |
User Interface | 8-inch touch screen |
Operation Log | Audit trail function |
Protocol Management | Create, save, edit, and delete |
Extraction Time | 10 - 40 min/run (dependent on reagents used) |
Expansion Interface | USB |
Power Supply | AC 100-240 V, 50/60 Hz, 600 W |
Operating Temperature | 10°C – 40°C |
Operating Humidity | 0% – 85% (non-condensing) |
Storage Temperature | -20°C – 55°C |
Dimensions (W × D × H) | 470 mm × 341 mm × 487 mm |
Weight | 27 KG |
